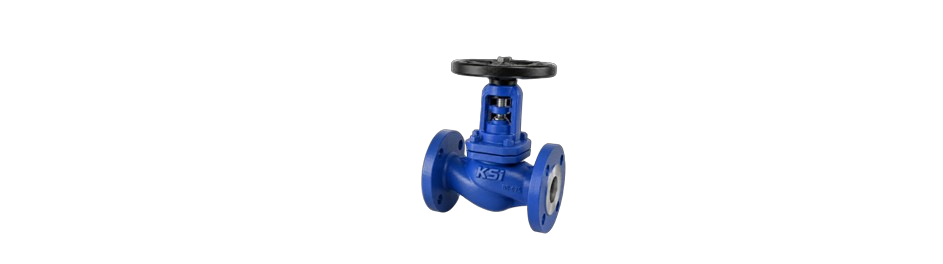

KSI Bellow Sealed Globe Valve
KSI Bellow Sealed Globe
Bellow Seal Globe valve is excellent choice for high temperature steam installation and Hot oil.
Steam, cold water, hot water and hot oil, LPG, chemical fluids, compressed air etc.
350°C for Water, Oil Gas
- Body Design Conditions PN-16 / PN-40
- Face to Face Length: ISO 5752, EN 558 SERIES 1 (F1), DIN 3202
- Flanges: EN 1092-2, ISO 7005-5, DIN 2501
- Cast Steel GS-C25+13Cr Body and Bonnet
- Stainless steel stem
- AISI 304 Stainless Steel Bellow (Other bellow types optional)
- Outer surfance of Value is liquid exposy painted
- Metal to metal application
- Oblique body structure
- Can be installed in horizontal or vertical position
